The current page：Home > Products > Welding automation > Rotator
Products

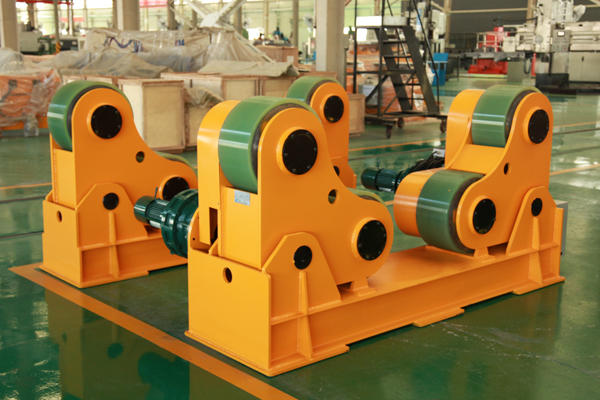

TR1 series self aligning welding rotator

Feature code：
  • Automatic adjustment of roll swing angle.
  • Gear meshing transmission, stable operation.
  • Frequency stepless speed regulation, large starting torque.
  • Remote control by operator pendant, simple and reliable.
  • Electric linkage interface for automatic welding reserved, convenient for application.
  • The electric travelling module and mechanical anti floating device are optional.
  • Rotating conductive device is optional for the steel roller.
  • Both wire operator pendant and wireless operator pendant are available.
  • Flexible configuration of power roller and idle roller.


Model

Load capacity

(T)

 Linear velocity

(mm/min)

Diameter of workpiece

(mm)

Motor power

(kW)

Roller dimension

(D×W)/ mm

TR1-5T

5

100～1000

350～2500

1×0.25

φ250×120 (PU roller)

TR1-10T

10

350～2500

2×0.25

φ250×120 (PU roller)

TR1-20T

20

600～4000

2×0.37

φ300×140 (PU roller)

TR1-30T

30

600～4500

2×0.37

φ350×180 (PU roller)

TR1-40T

40

600～4500

2×0.55

φ400×160 (PU roller)

TR1-50T

50

750～5000

2×0.75

φ400×180 (PU roller)

TR1-60T

60

800～5000

2×0.75

φ400×200 (PU roller)）

TR1-80T

80

900～5500

2×1.1

φ500×200 (PU roller)

TR1-100T

100

900～5500

2×1.5

φ500×240 (PU roller)

TR1-150T

150

1000～6300

2×2.2

φ550×320 (PU roller)

Note: The above parameters are for TIME standard rotator configurations, and can be customized according to the customer’s requirements.
