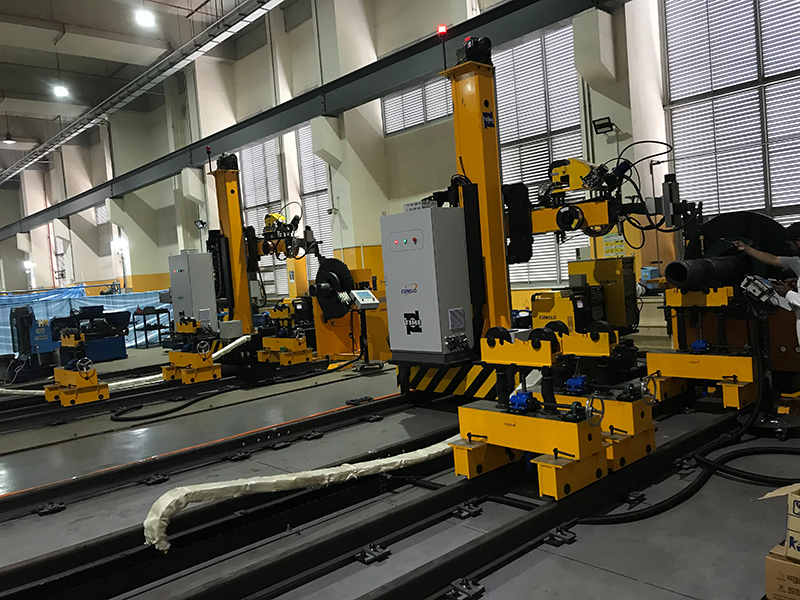

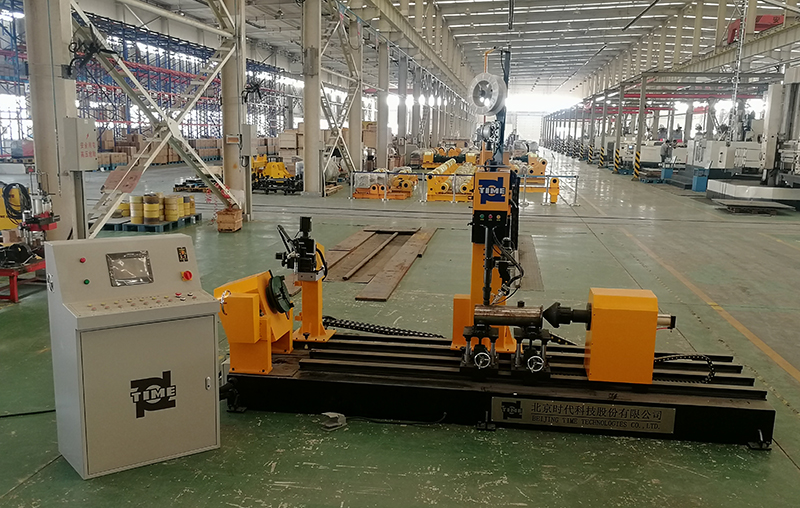

Multi function circumferential welding equipment

Feature code：

Applied to pipelines prefabrication, gas cylinders production, water-cooled motor case, small storage tanks industry etc.
Work piece types include pipe- pipe, pipe–flange, pipe-head plate, pipe-elbow, intubate-main pipe.
Composed of overturning Servo power head, side-hanging slide frame or digital operator, lifting idler and a pneumatic tail frame.
Flexible configuration of single welding head or twin welding head, work with various types of seam sensors. Various welding processes available.
Welding position can be horizontal circular seam, vertical circular seam and small TDMAW circular seam, and short longitudinal seam.
Intelligent control sysytem to achieve Networked Management of welding process.
Customized: Effective weld length≤6000mm,workpiece diameter ≤1200mm, weight ≤3T.
