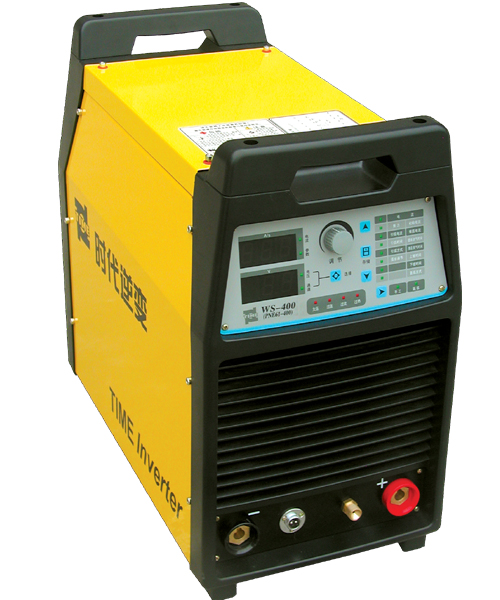

WS-400(PNE61-400)

Feature code：

PNE61-series is a whole digital DC TIG/MMA arc welding machine based on the technologies of DSP, fuzzy control, wave control and adaptive control. It has wide application in non-consumable electrode argon arc welding for all sorts of metals except Al, Mg and their alloys, and manual arc welding for a variety of acid and basic electrodes.

Main characteristics:
● IGBT inverter.
● High reliability and excellent welding performance.
● Wide range of supply voltage.
● Multiple adjustable parameters and argon arc operation modes.
● Visual and easy to operate.
● RS-485 communication socket match RC-6, RC-7 remote controller

● Realization of remote setting and supervision by TIME TWPM welding process management system
● Cellulose welding is optional

Model	WS-400
Company type	PNE61-400
Rated input voltage(V)	3 phase 380V±15% 50~60Hz
Rated Input capacity (KW)	17
No-load voltage (V)	76±5%
Output current adjusting range(A)	5~410
Slope up time (s)	0.1~99.9
Slope down time (s)	0.1~99.9
Pre-flow time (s)	0~13
Post-flow time (s)	0.1~50
Ignition time (s)	0.01~1s
Duty cycle (40℃)	60%
Efficiency (η)	85%
Power factor(cosΦ)	0.93
Insulation grade	F
Case protection grade	IP23S
Cooling	Wind
Dimensions (mm)	560×300×530
Net weight (kg)	34
